21. Recursion

Recursion means “defining something in terms of itself” usually at some smaller scale, perhaps multiple times, to achieve your objective. For example, we might say “A human being is someone whose mother is a human being”, or “a directory is a structure that holds files and (smaller) directories”, or “a family tree starts with a couple who have children, each with their own family sub-trees”.

So methods can call themselves to solve smaller sub-problems. This idea that the method can usefully call itself is the essence of recursion.

21.1. Drawing Fractals

For our purposes, a fractal is a recursive drawing which has self-similar structure. It can be defined in terms of itself.

Let us start by looking at the famous Koch fractal. An order 0 Koch fractal is simply a straight line of a given size.

_images/koch_0.png

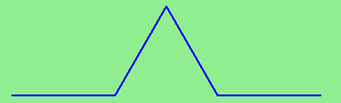

An order 1 Koch fractal is obtained like this: instead of drawing just one line, draw instead four smaller segments, in the pattern shown here:

_images/koch_1.png

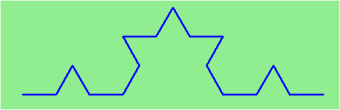

Now what would happen if we repeated this Koch pattern again on each of the order 1 segments? We’d get this order 2 Koch fractal:

_images/koch_2.png

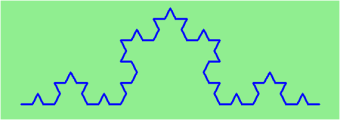

Repeating our pattern again gives us an order 3 Koch fractal:

_images/koch_3.png

Now let us think about it the other way around. To draw a Koch fractal of order 3, we can simply draw four order 2 Koch fractals. But each of these in turn needs four order 1 Koch fractals, and each of those in turn needs four order 0 fractals. Ultimately, the only drawing that will take place is at order 0. This is very simple to code up in C#:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
    void koch(Turtle t, int order, double size)
    {
        // Make turtle t draw a Koch fractal of 'order' and 'size'.
        // Leave the turtle facing the same direction as it started in.

        if (order == 0)
        {   // The base case is just a straight line
            t.Forward(size);   // This is the only place we draw!
        }
        else
        {
            koch(t, order - 1, size / 3);   // Make a smaller koch drawing, 1/3 size
            t.Left(60);
            koch(t, order - 1, size / 3);
            t.Right(120);
            koch(t, order - 1, size / 3);
            t.Left(60);
            koch(t, order - 1, size / 3);
        }
    }

The key thing that is new here is that if order is not zero, koch calls itself recursively to get its job done.

Whenever koch calls itself, it asks for a koch line of one order less than itself. Take some time to convince yourself that every recursive call is a “simpler” sub-problem, and that the process must terminate.

Recursion, the high-level view

One way to think about this is to convince yourself that the method works correctly when you call it for an order 0 fractal. Then do a mental leap of faith, saying “the fairy godmother (or C#, if you can think of C# as your fairy godmother) knows how to handle the recursive order 0 calls for me on lines 12, 14, 16, and 18, so I don’t need to think about that detail!” All I need to focus on is how to draw an order 1 fractal if I can assume the order 0 one is already working.

You’re practising mental abstraction — ignoring the sub-problem while you solve the big problem.

If this mode of thinking works for you (and you should practice it!), then take it to the next level. Aha! Now can I see that it will work when called for order 2 under the assumption that it is already working for order 1.

And, in general, if I can use mental abstraction to gloss over how the order n-1 case works, can I just focus on solving the order n problem?

Students of mathematics who have played with proofs of induction should see some very strong connect-the-dots similarities here.

Recursion, the low-level operational view

Another way to understand recursion is to get rid of it! If we use separate methods to draw an order 3 fractal, an order 2 fractal, an order 1 fractal and an order 0 fractal, we could simplify the above code, quite mechanically, to a situation where there was no longer any recursion, like this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
void koch0(Turtle t, double size)
{
    t.Forward(size);
}

void koch1(Turtle t, double size)
{
    koch0(t, size / 3);
    t.Left(60);
    koch0(t, size / 3);
    t.Right(120);
    koch0(t, size / 3);
    t.Left(60);
    koch0(t, size / 3);
}

void koch2(Turtle t, double size)
{
    koch1(t, size / 3);
    t.Left(60);
    koch1(t, size / 3);
    t.Right(120);
    koch1(t, size / 3);
    t.Left(60);
    koch1(t, size / 3);
}

void koch3(Turtle t, double size)
{
    koch2(t, size / 3);
    t.Left(60);
    koch2(t, size / 3);
    t.Right(120);
    koch2(t, size / 3);
    t.Left(60);
    koch2(t, size / 3);
}

This trick of “unrolling” the recursion gives us an operational view of what happens. You can trace or single-step the program into koch3, and from there, into koch2, and then into koch1, etc., all the way down the different layers of method calls.

If koch3 is called once, koch2 will be called four times. How many times will koch0 eventually be called?

Single-stepping and taking an operational view of recursion can help build your insight. The mental goal is, however, to be able to do the abstraction for the general case!

21.2. Case study: Factorials

Six factorial (written elsewhere as 6!) can easily be calculated in a loop, as 6x5x4x3x2x1. But we can also look at this with our recursive spectacles: N factorial is N x (N-1 factorial). Of course, if we define it in terms of itself we’ll need a base case too. So we complete our recursive definition by defining 0 factorial to be 1. Here is a recursive value-returning method that computes factorials:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
private int fact(int n)
{
    if (n <= 1) return 1;
    else return n * fact(n - 1);
}

private void btnFact_Click(object sender, RoutedEventArgs e)
{
    int n = Convert.ToInt32(txtFact.Text);
    MessageBox.Show(string.Format("{0} factorial is {1}", n, fact(n)));
}

When we run this a message box pops up to (correctly) tell us that 5 factorial is 120.

A deck of playing cards has 52 cards (without Jokers). If we shuffle a deck, how many possible shufflings are there? (Shuffling a deck puts the cards into a different permutation, so the question becomes “how many permutations can we have of 52 distinct objects?”, and the answer, of course, is 52 factorial.)

But when we run our program to compute 52 factorial, our program gets it wrong, with an incorrect result of zero.

52! is a large number (relative to our 32-bit integers in C#) — too big to store in a int. So the computation fails with what is called an overflow error, and fails to detect the problem.

We can set some options in Visual Studio for overflow checking, and make sure that the run-time error is brought to our attention rather than silently ignored. (Search the Internet for “C# enable Overflow Checking” if you want to try this approach, but it won’t help you to compute 52! or 1000!)

Often we do need to compute with big integers, especially in fields like cryptography and problems that need us to compute 1000! exactly. So there is a library called System.Numerics that provides a structure called BigInteger for representing an arbitrary large signed integer.

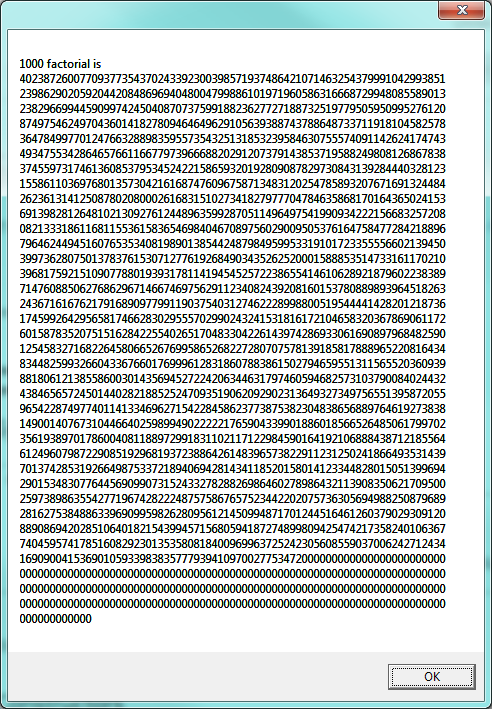

We need to add a reference to our project to include the System.Numerics module, and we’ll add the directive using System.Numerics; at the top of the file we’re working with. But after that, it is really simple: all we change is the return type of the fact method in line 1 above, to make the return type BigInteger rather than int. Now we’re good for this example:

_images/fact1000.png

21.3. Case study: Fibonacci numbers

The famous Fibonacci sequence 0, 1, 1, 2, 3, 5, 8, 13, 21, 34, 55, 89, 134, ... was devised by Fibonacci (1170-1250), who used this to model the breeding of pairs of rabbits. If, in generation 7 you had 21 pairs in total, of which 13 were adults, then next generation the adults will all have bred new children, and the previous children will have grown up to become adults. So in generation 8 you’ll have 13+21=34, of which 21 are adults.

This model to explain rabbit breeding made the simplifying assumption that rabbits never died. Scientists often make (unrealistic) simplifying assumptions and restrictions to make some headway with the problem.

If we number the terms of the sequence from 0, we can describe each term recursively as the sum of the previous two terms:

fib(0) = 0
fib(1) = 1
fib(n) = fib(n-1) + fib(n-2)  for n >= 2

This translates very directly into some C#:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
using System.Diagnostics;   // for Stopwatch

private int fib(int n)
{
    if (n <= 1) return n;
    int t = fib(n - 1) + fib(n - 2);
    return t;
}

private void btnFib_Click(object sender, RoutedEventArgs e)
{
    int n = Convert.ToInt32(txtFib.Text);
    Stopwatch sw = new Stopwatch();
    sw.Start();
    int result = fib(n);
    double elapsedSecs = (sw.Elapsed).TotalSeconds;
    MessageBox.Show(string.Format("The {0}'th Fib number is {1}\nTime taken {2:F2} secs.",
                                                                 n, result, elapsedSecs));
}
_images/fib45.png

We get the correct result, but as we ask for more terms in the sequence we get an exploding amount of work! This is a particularly inefficient algorithm. There are much better ways to compute this.

21.4. Debugging and instrumenting recursion

Suppose we wanted to know how many times fib had been called above, and what the maximum depth of recursion was that had been reached. Using class-level variables and some extra parameter information is a handy way of arranging this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
using System.Diagnostics; // for Stopwatch

int fibCallCount, maxDepthSeen;

private int fib(int n, int depth = 0)
{
    fibCallCount++;
    if (depth > maxDepthSeen)
    {
        maxDepthSeen = depth;
    }

    if (n <= 1) return n;
    int t = fib(n - 1, depth + 1) + fib(n - 2, depth + 2);
    return t;
}

private void btnFib_Click(object sender, RoutedEventArgs e)
{
    int n = Convert.ToInt32(txtFib.Text);
    Stopwatch sw = new Stopwatch();
    sw.Start();
    maxDepthSeen = 0;
    fibCallCount = 0;
    BigInteger result = fib(n);
    double elapsedSecs = (sw.Elapsed).TotalSeconds;
    MessageBox.Show(
        string.Format("The {0}'th Fib number is {1}\nTime taken {2:F2} secs.\nCalls={3} MaxDepth={4}",
                      n, result, elapsedSecs, fibCallCount, maxDepthSeen));
}
_images/fib_with_instrumentation.png

Notice that the caller had to set the two class-level variables to zero at lines 20-21 before calling fib. Notice too on line 3 that depth was made an optional parameter with a default value of zero. So the first call to fib (line 22) did not supply an argument, but the recursive calls at line 11 made sure than the value passed to the “next” recursive invocation was one more than the depth at the current invocation.

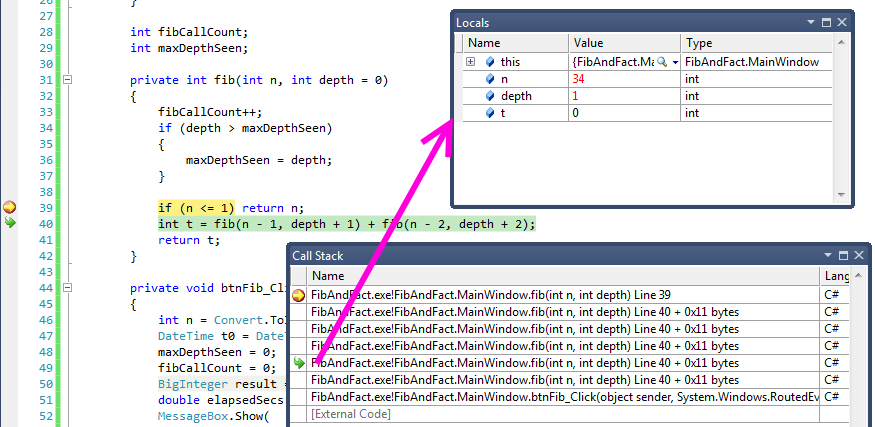

Another useful mechanism is single-stepping and debugging. In Visual Studio one can set a condition on a breakpoint by right-clicking on the breakpoint, and adding a condition. So let’s set a conditional breakpoint at line 11 in the program above: the program should only break when n == 30.

_images/recursion_breakpoint.png

The picture shows that the program has entered debugging mode at line 39. The Call Stack window shows the stack frames of all the recursive calls, with the most recent one at the top. We’ve chosen one of the stack frames (with the curly green arrow at the left). The local variable window shows the local variables for whichever stack frame we select: in this case we’re inspecting the values in the frame that is at depth 1 (counting from the bottom, the first fib frame is at depth zero).

Using the debugger cleverly like this will not only help us find problems, but inspecting the stack and the locals in each stack frame will build a solid and accurate understanding of how our programs are executing.

21.5. Processing recursive directories and files

While the recursive Fibonacci and Factorial examples are interesting teaching examples (especially if you know the typically recursive definitions from a mathematics course), both are easier to implement without using recursion. This section introduces a much more compelling example — one that is much more difficult to implement if we don’t use recursion.

The problem is to traverse a recursive data structure: in our case, a directory on our disk. The directory may recursively contain other directories and files.

The following program lists all the files in the directory and its sub-directories (and of course, the sub-sub-sub directories ...)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
...
using System.IO;
...

private void btnGo_Click(object sender, RoutedEventArgs e)
{
    lblHeading.Content = string.Format("Folder listing of {0}\n", txtPath.Text);
    txtResults.Clear();
    showFilesIn(txtPath.Text);
}

private void showFilesIn(string path)
{
    string [] filenames = Directory.GetFiles(path);
    foreach (string fn in filenames)
    {
        txtResult.AppendText(String.Format("{0}\n", fn));
    }

    string[] subfolders = Directory.GetDirectories(path);
    foreach (string fldr in subfolders)
    {
        showFilesIn(fldr);  // recurse for each subfolder!
    }
}
  • Line 14 shows how we can get the full pathnames of all the files in a given folder. Line 20 is very similar: it gets the full pathnames of all the sub-directories.
  • The interesting recursive call occurs in line 23.

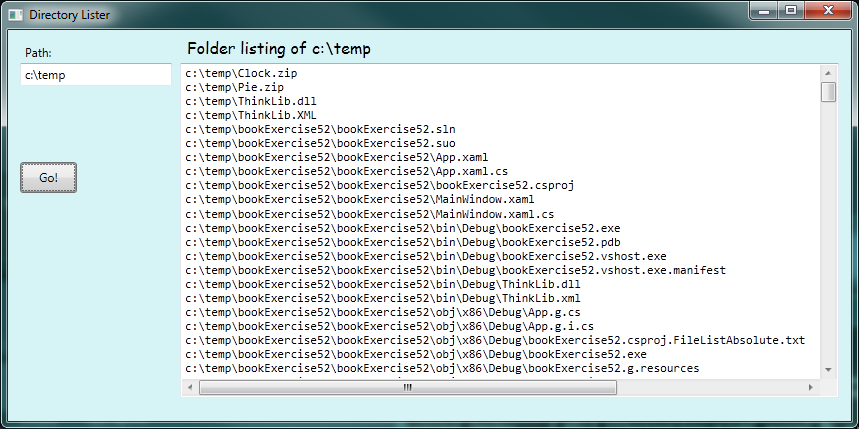

With a suitable font-end GUI we could get this:

_images/directory_traversal1.png

Tip:

Recursive structures, such as directories and menu trees, are much easier to process if you use a recursive algorithm.

Let’s take this example one or two steps further. A nice extension is to only list files matching a certain pattern — let’s say only the C# code-behind our GUI files. Those all have names that end in *.xaml.cs. One way to do this would be to wrap line 16 in an if test. But even easier is that the GetFiles method in line 14 has another overloading: one that accepts a pattern, and does the filtering for us. When searching for a string (eg. the file’s name) the asterix (*) is a special character which allows us to return all strings starting or ending in a specific pattern as it returns all results which contain any number and variation of characters in the place of the asterix.

We’ll provide a new text box on the GUI to allow the user to enter a pattern, and use this slightly revised code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
private void btnGo_Click(object sender, RoutedEventArgs e)
{
    lblHeading.Content = string.Format("Folder listing of {0}\n", txtPath.Text);
    txtResults.Clear();
    showFilesIn(txtPath.Text, txtPattern.Text);
}

private void showFilesIn(string path, string pattern)
{
    foreach (string filename in Directory.GetFiles(path, pattern)) //utilising overload of GetFiles
    {
        txtResults.AppendText(string.Format("{0}\n", filename));
    }

    foreach (string foldername in Directory.GetDirectories(path))
    {
        showFilesIn(foldername, pattern);
    }
}

Notice the changes to pass the extra filtering pattern into our method, to use the extra pattern in the call to GetFiles, and to ensure that when we call ShowFilesIn recursively at line 17, we supply the extra pattern argument to the method that must solve our subproblem.

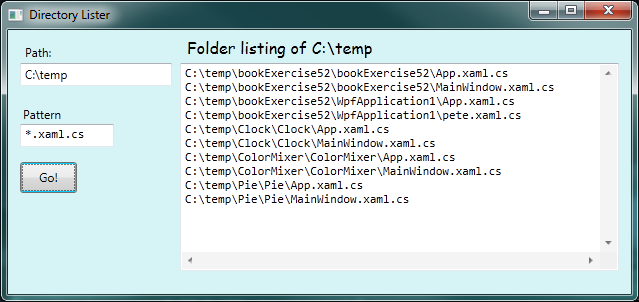

Now our listing looks like this:

_images/directory_traversal2.png

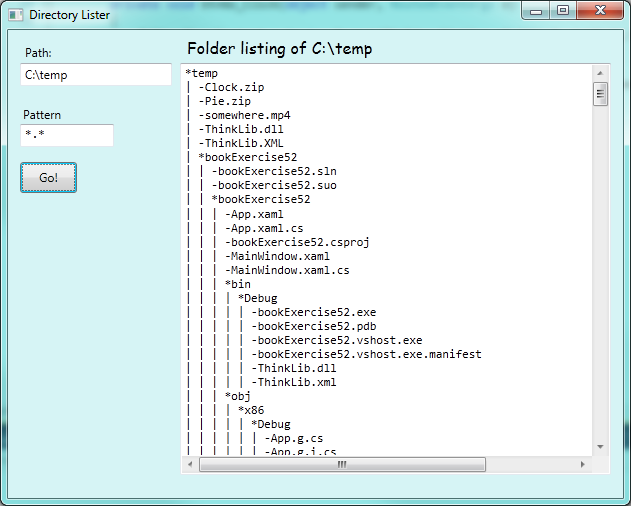

In the listings above, each file name is shown with its full path. A more interesting idea is to just show the directory names and file names (without the full path from C:), but to use some simple layout or extra characters to help the user visualize the recursive folder structure. So for the next version of this program, we want to produce output like this:

_images/directory_traversal3.png

To do this, we will output each line with a prefix string: something like “| | |” that will indicate that we’re three levels deep into the structure. In the code below, we start on line 6 with an initial prefix "| ". Then, on line 19, each time we recurse down to a deeper level of the directory tree, we extend the existing prefix string.

We also use some existing magic from the built-in libraries on lines 5, 13, and 18 (the GetFilename method): this call returns just the file name part of a full file path:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
private void btnGo_Click(object sender, RoutedEventArgs e)
{
    lblHeading.Content = string.Format("Folder listing of {0}\n", txtPath.Text);
    txtResult.Clear();
    txtResult.AppendText(string.Format("*{0}\n", Path.GetFileName(txtPath.Text)));
    showFilesAsTree(txtPath.Text, txtPattern.Text, "| ");
}

private void showFilesAsTree(string path, string pattern, string prefix)
{
    foreach (string filename in Directory.GetFiles(path, pattern))
    {
        txtResult.AppendText(string.Format("{0}-{1}\n", prefix, Path.GetFileName(filename)));
    }

    foreach (string foldername in Directory.GetDirectories(path))
    {
        txtResult.AppendText(string.Format("{0}*{1}\n", prefix, Path.GetFileName(foldername)));
        showFilesAsTree(foldername, pattern, prefix + "| ");
    }
}

21.6. An animated fractal using our turtle

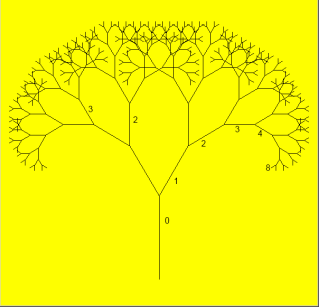

Here we have a tree fractal pattern of order 8. We’ve hand-labelled some of the edges, showing the depth of the recursion at which each edge was drawn.

_images/recursivetree1.png

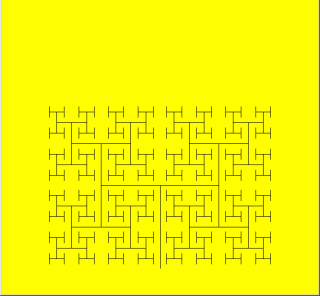

In the tree above, the angle of deviation from the trunk is 30 degrees. Varying that angle gives other interesting shapes, for example, with the angle at 90 degrees we get this:

_images/recursivetree2.png

An interesting animation occurs if we generate and draw trees very rapidly, each time varying the angle a little. We’ll use a timer to generate regular tick events. On each event, we’ll clear the previous tree and draw the new tree from scratch. Each tick will also change the angle slightly, to give the animation we desire. Let’s begin with the definition for the turtle, and setting up of the timer. (You can cut and paste this code into your programming environment if you’re reading the book on-line.)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
...
public partial class MainWindow : Window
{
    Turtle tess;
    double theta = 90;

    public MainWindow()
    {
        InitializeComponent();
        tess = new Turtle(playground);
        tess.Visible = false;

        System.Windows.Threading.DispatcherTimer theTimer = new System.Windows.Threading.DispatcherTimer();
        theTimer.Interval = TimeSpan.FromMilliseconds(50);
        theTimer.IsEnabled = true;
        theTimer.Tick += dispatcherTimer_Tick;
    }

    private void dispatcherTimer_Tick(object sender, EventArgs e)
    {
        drawNextTree();
    }

The most notable thing here is on line 14: the timer interval times the period between the end of one tick event, and the start of the next. So if we have processor-and-drawing intensive work (which is the case here), this does not translate into a regular tick. We can set the interval to zero, (or leave out line 14 completely), which means “tick as fast as possible”. Experiment with some different values for the timer interval.

Let’s consider the recursive pattern now for the tree: To draw a tree of order 0, just draw a straight line trunk part, with no further branches or leaves. And when we exit the method, we’ll always ensure that the turtle is back where it started, in the same orientation as it was in when the method was called.

For a tree of order greater than 0, we draw the trunk, turn for the new sub-tree, compute the smaller sub-tree size, and recursively draw the sub-tree. We do this for both our left and right sub-tree. So the code comes out like this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
const double trunk_ratio = 0.29;    // The trunk length is 29% of the tree size.

public void drawTree(int order, double theta, double treeSize)
{
    double trunkSize = treeSize * trunk_ratio;  // compute length of trunk
    tess.Forward(trunkSize);                    // always draw the trunk

    if (order > 0)                              // must we also draw subtrees?
    {
        double branchSize = treeSize - trunkSize;
        tess.Left(theta);
        drawTree(order - 1, theta, branchSize);
        tess.Right(2 * theta);
        drawTree(order - 1, theta, branchSize);
        tess.Left(theta);
    }

    tess.Forward(-trunkSize);    // make sure we end up back where we started.
}
  • Lines 11,13 and 15 ensure that whatever heading the turtle started at will be its final heading too.
  • Line 18 puts the turtle back where it began, by “undoing” the movement from line 6.
  • The all-important recursive calls on line 12 and 14 decrease the order at the next level, and decrease the overall remaining size to be drawn.

So what is left: we need to handle the timer tick, clear the old drawing, draw the new tree, and change our class-level variable theta. So the final piece of the puzzle is this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
private void drawNextTree()
{
    tess.Clear();
    tess.BatchSize = 0;
    tess.WarpTo(playground.ActualWidth / 2, playground.ActualHeight - 10);
    tess.Heading = -90;
    drawTree(7, theta, playground.ActualHeight - 10);

    theta += 5;
}
  • Lines 5 and 7 show that we can make the tree size and the starting position for the turtle depend on the playground size. If your playground stretches as your window resizes, the tree will grow bigger or smaller.
  • Line 4 needs some explanation. When the turtle “draws” it constructs new WPF controls - mainly line segments. In it’s default setting, the turtle forces our screen to refresh after each new line segment is created. This one-at-a-time refreshing can be very slow if there are many line segments in our drawing. Setting the batch size of the turtle to zero means “do not refresh the screen until all the current computation finishes”. It means we’ll show the whole tree at once, and things will be much faster. Try commenting out line 4 and see the difference.

21.7. Glossary

base case
A branch of the conditional statement in a recursive method that does not give rise to further recursive calls.
infinite recursion
A method that calls itself recursively without ever reaching any base case. Eventually, infinite recursion causes a runtime error.
recursion
The process of calling a method that is already executing.
recursive call
The statement that calls an already executing method. Recursion can also be indirect — method f can call g which calls h, and h could make a call back to f.
recursive definition
A definition which defines something in terms of itself. To be useful it must include base cases which are not recursive. In this way it differs from a circular definition. Recursive definitions often provide an elegant way to express complex data structures, like a directory that can contain other directories, or a menu that can contain other menus.

21.8. Exercises

  1. Change a small recursive program from this chapter so that the base case test is never satisfied. Run it and see what happens. Can you make sense of the error message, and recognize it in future?

  2. Modify the Koch fractal program so that it draws a Koch snowflake, like this:

    _images/koch_snowflake.png

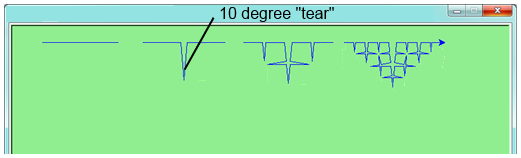

    1. Draw a Cesaro torn line fractal, of the order given by the user. We show four different lines of orders 0,1,2,3. In this example, the angle of the tear is 10 degrees.

      _images/cesaro_torn_line.png

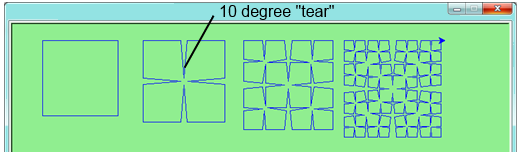

    2. Four lines make a square. Use the code in part a) to draw Cesaro squares. Varying the angle gives interesting effects — experiment a bit, or perhaps let the user input the angle of the tear.

      _images/cesaro_torn_square.png
    1. (For the mathematically inclined). In the squares shown here, the higher-order drawings become a little larger. (Look at the bottom lines of each square - they’re not aligned.) This is because we just halved the drawn part of the line for each recursive sub-problem. So we’ve “grown” the overall square by the width of the tear(s). Can you solve the geometry problem so that the total size of the sub-problem case (including the tear) remains exactly the same size as the original?

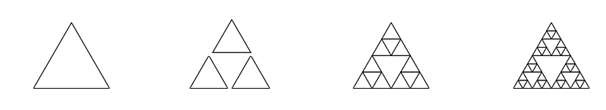

  3. A Sierpinski triangle of order 0 is an equilateral triangle. An order 1 triangle can be drawn by drawing 3 smaller triangles (shown slightly disconnected here, just to help our understanding). Higher order 2 and 3 triangles are also shown. Draw Sierpinski triangles of any order input by the user.

    _images/sierpinski.png

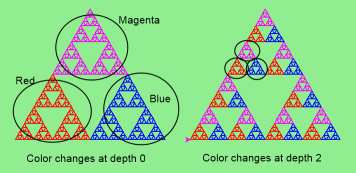

  4. Adapt the above program to change the brush colour of its three sub-triangles at some depth of recursion. The illustration below shows two cases: on the left, the colour is changed at depth 0 (the outermost level of recursion), on the right, at depth 2. If the user supplies a negative depth, the colour never changes. (Hint: add a new optional parameter colourChangeDepth (which defaults to -1), and make this one smaller on each recursive sub-call. Then, in the section of code before you recurse, test whether the parameter is zero, and change color.)

    _images/sierpinski_color.png
  5. Rewrite the Fibonacci algorithm without using recursion. Make use of the BigInteger type that was introduced in the factorial section. Find fib(200).

  6. 10! has two trailing zeros. 20! has four trailing zeros. But 30! has 7 trailing zeros, which is not what you might have guessed! Explain where these trailing zeros are coming from, and what is special about the range between 20! and 30! (Hint: Count and display the trailing zeros to allow you to easily investigate the problem.)

  7. Modify our program that traverses a directory structure. Instead of outputting file names, it returns a list of all the full paths of files in the directory or the subdirectories. (Don’t include directories in this list — just the files.) For example, the output list might have elements like this:

    ["C:\temp\Clock.zip", "C:\temp\Pie.zip", "C:\temp\ThinkLib.dll",  ... ]

  8. Write a method named litter that creates an empty file named trash.txt in each subdirectory of a given directory tree. Hint: Use File.Create to create a file.

  9. Now write a method named cleanup that removes all the litter files.

    Hint 1: Use the directory lister program from this chapter as a basis for these recursive programs. Because you’re going to destroy files on your disks, you had better get this right, or you risk losing files you care about. So excellent advice is that initially you should fake the deletion of the files — just output the full path names of each file that you intend to delete. Once you’re happy that your logic is correct, and you can see that you’re not deleting the wrong things, you can put the real code in place.

    Hint 2: Use File.Delete to remove a file.
