22. Exceptions

22.1. Catching exceptions

Whenever a runtime error occurs, the system throws an exception. When this happens, an Exception object is created. It holds details about what went wrong, and where. We use the word “throw” to describe what happens, as one might say “I’m throwing this problem at my boss”, or “I’m throwing this problem over the fence”.

Unless we take some special action to catch and handle the problem, the program will crash at this point. For example, division by zero will throw an exception. So will an array or list index out of bounds, or an attempt to use a file that does not exist.

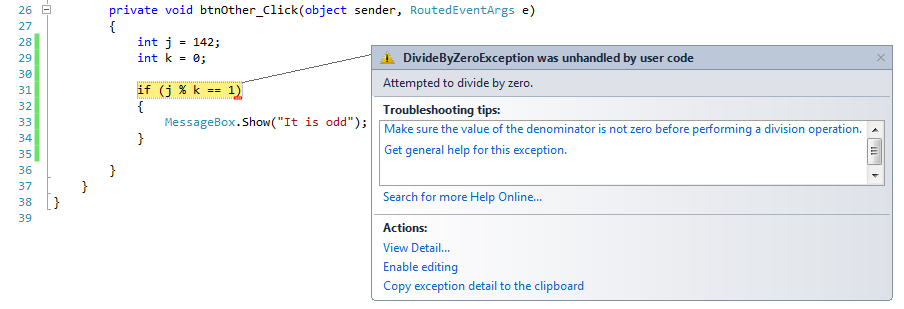

_images/DivideByZero.png

The key to what we’re going to do here is given by the title bar of the exception window in this image: the exception “was unhandled by user code”. We’re about to see how we can handle it.

In the picture above, also on the title line, we’re also told what type of exception was thrown, in this case a DivideByZeroException.

Sometimes we want to execute an operation that might throw an exception, but we don’t want the program to crash. We can handle the exception using the try ... catch statement to “wrap” a region of code.

For example, we might ask our user to enter a name of a file and then we’ll try to read from it. If the file doesn’t exist, we want to catch and handle the exception:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
string filename = textBox1.Text;
try
{
    string content = File.ReadAllText(filename);
    /// do other useful things with the content
    /// ...
}
catch (Exception ex)
{
    string msg = string.Format("Reading file {0} threw an exception: \n{1}",
          filename, ex);
    MessageBox.Show(msg);
}
...

The try ... catch statement consists of a try block followed by one or more catch clauses, which specify handlers for different types of exceptions. Each catch clause has an associated block of code.

try executes and monitors the statements in the first block (lines 3-7). If no exception is thrown, it skips any catch clauses and continues execution (at line 14 in this example). If any exception occurs, information about the error is packed into a new exception object, and the exception is thrown. In this example, the exception is caught at line 8, and is assigned to variable ex. Control immediately jumps into the catch block, where we execute lines 10-12. When the block completes, execution continues at line 14 in this example.

Within the catch block, object ex is like any other parameter we’ve encountered: it has a type, it has some properties, and it has some methods, and you can choose your own variable name for it. If you’re inquisitive about what else is inside an exception object, set a breakpoint at line 10 and use the debugging tools to inspect it.

22.2. We can catch exceptions that occur in methods we’ve called

As our software becomes more complex we attempt to manage the complexity by breaking it into methods (and coming soon) separate objects, and perhaps even separate libraries.

Suppose your method P has a try ... catch statement to catch exceptions. P calls method Q which calls W. But W throws a FileNotFoundException. What happens next?

If W does not catch the exception, it exits immediately, and the exception is thrown up to its caller Q. If Q can’t catch it, the same happens again, with the exception thrown up to P. Now because P has a catch, it can recover.

We call the process of exiting all the called methods until we find one that is willing to catch our exception unwinding the call stack.

So the important idea is that a try ... catch statement can catch exceptions that occur, even if they occur indirectly in other methods that are called from the wrapped statements.

We’ll need some care, though. In the example above we caught the exception at line 8, with an assumption that it was line 4 that caused the fault. But in fact lines 5 or 6, or any methods called by them could be our culprit.

22.3. The Exception Hierarchy

In Section 13.4 we introduced the idea that classes, or types, were organized hierarchically via a system of inheritance. We saw that an Ellipse object is-a kind of Shape object which is-a kind of UIElement.

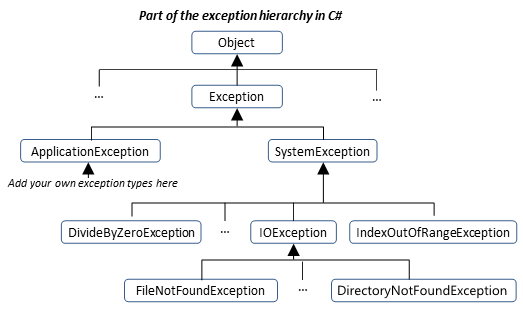

Exception types are also organized hierarchically. Here is a small fragment diagram showing just a few possible types of exception.

_images/hierarchy.png

A catch can only catch certain kinds of exception. In line 8 in our example, we offered to catch anything of type Exception. That is the most general type of exception, and because FileNotFoundException is-a Exception, our catch will catch it.

But you can (and are generally encouraged) to catch specific exception types. Consider this fragment of code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
try
{
    ...
}
catch (FileNotFoundException ex1)
{  ... }
catch (DirectoryNotFoundException ex2)
{  ... }
catch (IOException ex3)
{  ... }

Here we’re offering to catch three different kinds of exceptions (so our try can have multiple catch clauses), but we wouldn’t catch a DivideByZeroException if one occurred, either on line 3, or in some method called indirectly by line 3.

Notice too that line 9 catches IOException. Although FileNotFoundException is-a IOException, it won’t be caught at line 9 — it will get caught instead at line 5. The catch clauses are examined in the order that we write them, top-to-bottom.

The very readable Microsoft documentation at http://msdn.microsoft.com/en-us/library/vstudio/0yd65esw.aspx says

It is possible to use more than one specific catch clause in the same try ... catch statement. In this case, the order of the catch clauses is important because the catch clauses are examined in order. Catch the more specific exceptions before the less specific ones. The compiler produces an error if you order your catch blocks so that a later block can never be reached.

A good guideline is to only catch the exceptions that you can recover from. For example, if your user is entering the name of the file to open, they’re going to get it wrong sometimes. Perhaps catch FileNotFoundException, or the more general IOException.

There is a trade-off, though. If you catch the general exception you might be able to sidestep a wider range of problems. For example we might try to open a file that is already in use by another program, or perhaps the file is on a network drive and we have a timeout because the network fails temporarily. If you catch the general exception, you’ll be able to recover from all these cases, however, you won’t be able to react uniquely to each cause of the error.

22.4. Throwing our own exceptions

So far, run time errors throw exceptions. But there doesn’t always have to be an error. Our program can deliberately use a throw statement to throw an exceptions. Here is a method that expects a non-empty List<int> from the caller, and it finds the maximum:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
 private int findMax(List<int> xs)
 {
     if (xs.Count == 0)
     {
         Exception myBad = new InvalidOperationException("Cannot find max of an empty list.");
         throw myBad;
     }
     int result = xs[0];
     for (int i = 0; i < xs.Count; i++)
     {
         if (xs[i] > result)
         {
             result = xs[i];
         }
     }
     return result;
 }

Line 5 creates an exception object which encapsulates specific information about the error, and line 6 throws the exception.

InvalidOperationException is one of the built-in exception types that seem to most closely match the kind of error we want to raise.

If the method that called findMax (or its caller, or their caller, ...) handles the error, then the program can carry on running; otherwise the program crashes.

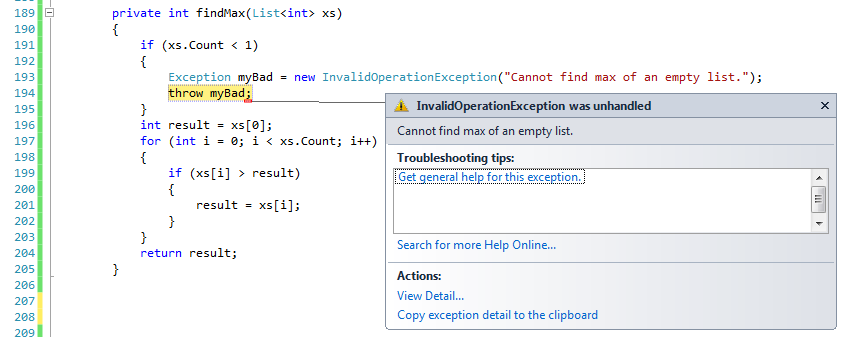

_images/own_exception.png

The error message includes the exception type and the additional information that was provided when the exception object was first created.

It is often the case that lines 193 and 194 (creating the exception object, then raising the exception) are combined into a single statement, but there are really two different and independent things happening, so perhaps it makes sense to keep the two steps separate when we first learn to work with exceptions. Here we show it all in a single statement:

1
 throw new InvalidOperationException("Cannot find max of an empty list.");

22.5. Glossary

catch an exception
Instead of the default behaviour of having our program crash, we can catch and recover from exceptions by wrapping regions of code in a try ... catch statement.
exception
An error that occurs at runtime. We say the exception is thrown.
exception hierarchy
Different types of exceptions are already defined in C#. The types of exceptions are organized into a hierarchical (tree-like) type structure, so, for example, an FileNotFoundException is-a kind of IOException which is-a kind of SystemException, which is-a kind of Exception.
is-a
A made-up word that Computer Scientists use to describe a relationship between a more specific type and a more general type. A Toyota is-a car.
throw statement
A C# statement that allows us to throw exceptions from our code.
unwinding the call stack
The process of exiting all the called methods until we find one that is willing to catch our exception. If the method which throws an error is unable to handle it we will exit that method and return to the call-site to see if the caller is able to catch the exception. If it cannot, we will continue to exit called methods until one is found which can handle the exception or the pogram crashes.

22.6. Exercises

  1. Create a GUI with a textbox for entering a month number. The number is valid if it is an integer between 1 and 12. Convert what the user enters to an integer, and validate that the number is between 1 and 12. If not, pop up a MessageBox that describes the problem, and ask the user to try again. Catch any cases where the user enters invalid characters, floating point numbers, leaves the text box blank, etc.

  2. Your car can break down in various ways. Make a list of at least 15 different ways (e.g. flat tyre, no fuel, door fell off, battery flat, won’t start, license expired, crashed into lamp pole, repossessed by bank, etc.) Google may be able to help if you ask the right question.

    Now organize these problems into a hierarchy of BreakDown exceptions. Draw a tree diagram like the one in this chapter to show these relationships.
